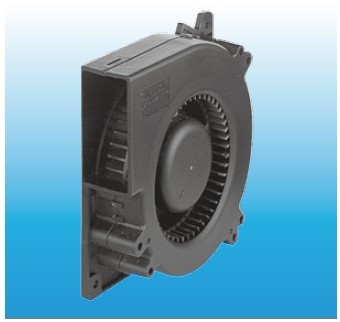

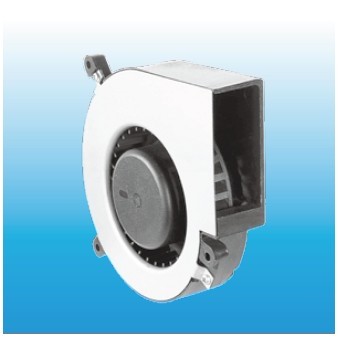

名稱：SFB196x109x33MM鼓風機
微信：13312956352
手機：13312956352
座機：0755-28058598
在線咨詢：
產品詳情
| 196 x 109 x 33 MM | |||||||||||
| MODEL |
Rated Voltage |
Operating Voltage Range |
Input Current |
Input Power |
Speed |
Maximum Air Flow |
Maximum Air Pressure |
Noise | |||
| PART NO. | FUNCTION | VDC | VDC | Amp | Watt | R.P.M. | m3 /min | CFM | mmH2O | IN H2O | dB-A |
| SFB0412L | -R00 / -F00 | 12 | 7.0 to 13.2 | 1.40 | 16.80 | 3300 | 1.610 | 56.85 | 27.06 | 0.893 | 57.5 |
| SFB0412M | -R00 / -F00 | 12 | 7.0 to 13.2 | 2.10 | 25.20 | 4000 | 2.012 | 71.07 | 40.85 | 1.608 | 61.5 |
| SFB0412H | -R00 / -F00 | 12 | 7.0 to 13.2 | 3.10 | 37.20 | 4600 | 2.325 | 82.12 | 56.08 | 2.208 | 64.5 |
| SFB0412HH | -R00 / -F00 | 12 | 7.0 to 12.6 | 4.60 | 55.20 | 5300 | 2.577 | 90.99 | 68.43 | 2.694 | 67.0 |
